Product description：
Features:

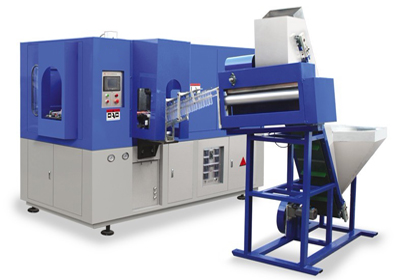

Full automatic blow molding machine is suitable for producing PET plastic containers and bottles in all shapes. It is widely used for producing the carbonated bottle, mineral water bottle, pesticide bottle, oil bottle, cosmetics bottle, wide-mouth bottle and hot filling bottle etc.
*Reasonable design, full automaticlly control, save power and labor.
*Feeding system carries the preforms by robot arms automatically.
*Infrared oven heater adopts the quartz lamp to heat the PET tube.
*Fully automatic process with low investment, high efficiency,quick and safe for operation, easy for maintenance.
*We have perfect service after sales .
*Adopting high quality components.
Main Parameter:
|
Model
|
ITEM
|
AK-20
|
AK-40
|
AK-60
|
|
Productivity
|
Depend on bottle design
|
1800-2000PCS/H
|
3200-4000PCS/H
|
4000-6000PCS/H
|
|
Product type
|
Volume
|
0.1-2L
|
0.1-2L
|
0.1-2L
|
|
Body diameter
|
≤100mm
|
≤100mm
|
≤100mm
|
|
Height
|
≤310mm
|
≤310mm
|
≤310mm
|
|
Neck diameter
|
≤38mm
|
≤38mm
|
≤38mm
|
|
Mould
|
Cavity
|
2
|
4
|
6
|
|
Mold thickness
|
240mm
|
240mm
|
240mm
|
|
Mold size
|
260*240*370mm
|
510*240*360mm
|
800*240*360mm
|
|
Main machine power
|
Electrical source power
|
380V/220V 50/60HZ 3Phase
|
380V/220V 50/60HZ 3Phase
|
380V/220V 50/60HZ 3Phase
|
|
Power
|
25kw
|
49kw
|
73kw
|
|
Really use power
|
6.5kw
|
13kw
|
22kw
|
|
Air system
|
HP air compressor
|
1.4 m3/min 3.0Mpa
|
2.0 m3/min 3.0Mpa
|
4.0 m3/min 3.0Mpa
|
|
LP air compressor
|
1.0 m3/min 1.0Mpa
|
1.6 m3/min 1.0Mpa
|
2.0 m3/min 1.0Mpa
|
|
Air Tank
|
0.6m3 3.0Mpa
|
0.6m3 3.0Mpa
|
1.0 m3 3.0Mpa
|
|
Air dryer
|
1.0m3/min 3.0Mpa
|
2.0m3/min 3.0Mpa
|
4.0m3/min 3.0Mpa
|
|
Cooling water
|
Water Chiller
|
3HP
|
3HP
|
5HP
|
|
Machine
|
Size(L*W*H)
|
1900*1280*1930mm
|
1900*1860*1930mm
|
4000*2000*1800mm
|
|
Weight
|
2000kg
|
3600kg
|
5300kg
|
|
Preform unscrambler
|
Size(L*W*H)
|
2000*950*2480mm
|
2000*950*2480mm
|
2000*950*2480mm
|
|
Weight
|
250kg
|
250kg
|
250kg
|
