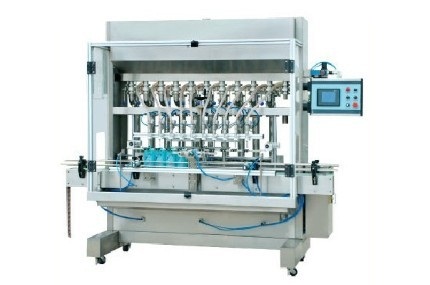

This
is a high-tech filling equipment integrating on the PLC microcomputer programmable control, and photo electricity transduction pneumatic action. The machine is especially suitable for foodstuff. For example: white spirit, soy sauce, vinegar, seasoning, vegetable oil, syrup, mineral water, edible liquid as well as chemical liquid. It has accurate filling measurement; there is not bubble and drop. It suits for the filling of all kinds of bottle (including irregular bottle) ranging from 25 to 10000 ml.
Technological parameters:
Range 25-10000ml
Speed ＜120bottles/minute (for 50-500ml)
Measurement precision ±1%
Rated power 0.8KW
Working voltage 220V
Working air pressure 6-7kg/cm²
Air-consuming amount 0.5m³/minute
Net weight 650kg
Contour Sizes 2000×870×1900mm
