Specifications

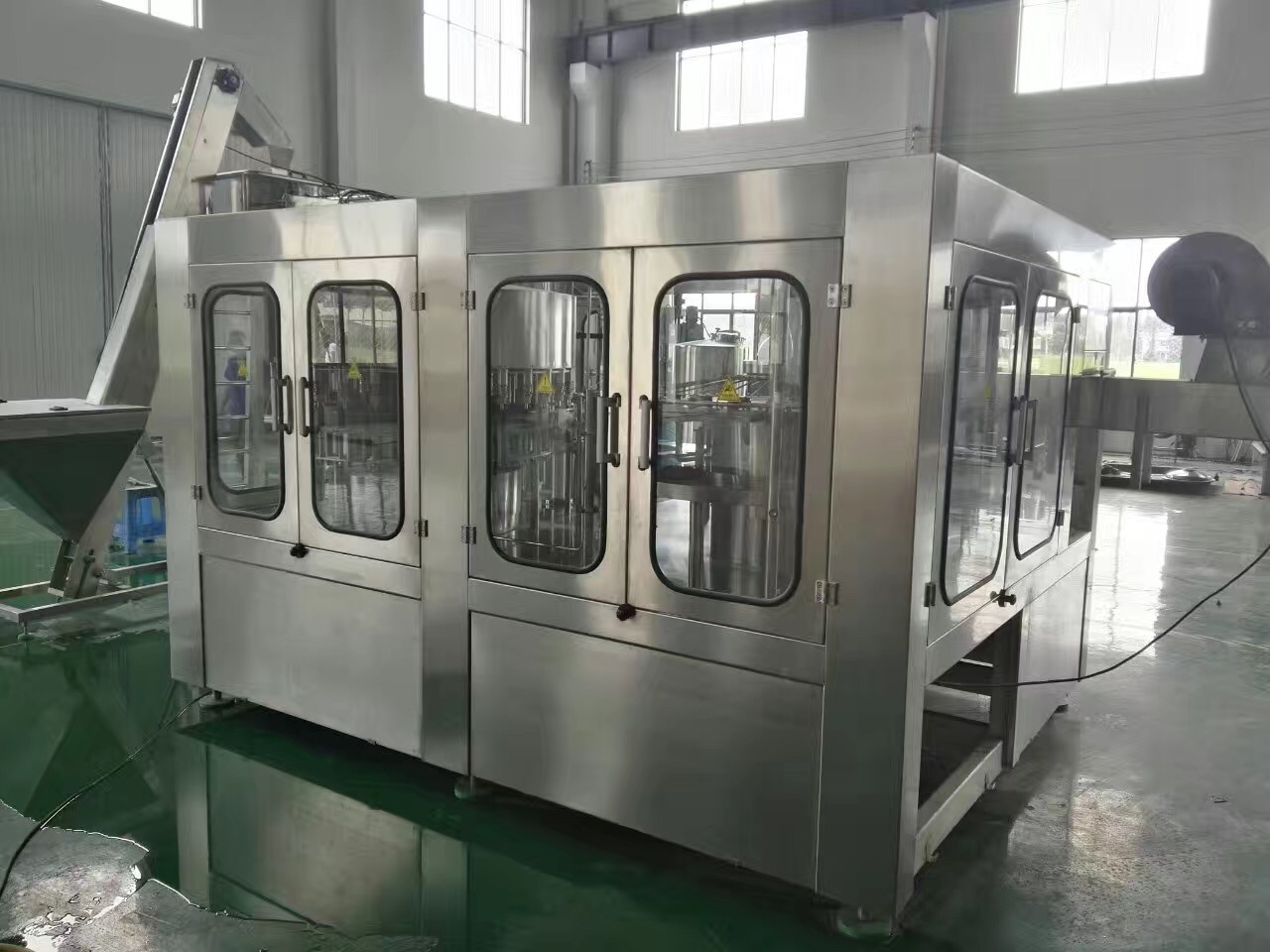

Non-carbonated Water Filling Machine
1,Product: Water
2, Bottle:PET
3,Capacity: 2000-40000BP(500ml)
4.Fully Automatic, for 0.5 to 2L
5,CE, UL, SGS, ISO, FDA
CGF series Non-carbonated Water Filling Machine apply to the production of mineral water, purified water, flavor water and low alcoholic drinks, etc.
Filling line includes:
Water treatment
Blow molding machine
Unscrambler
Air conveyor
Rinsing-filling-capping 3-in-1 monoblock
Sleeve / OPP labeler
Air dryer, visual inspection, ink jet printer
Shrink wrapper / wrap-round case packer
Palletizer
Etc.
Water Filling Machine/ Filling Machine

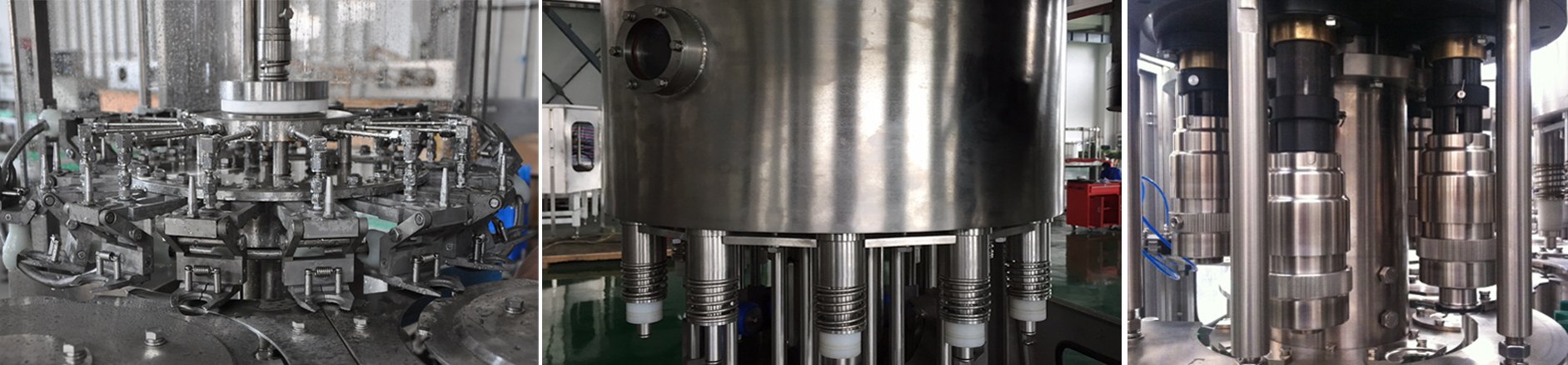

The water filling machine is mainly used in the beverage filling operations. The three functions of bottle wash, fill and seal are composed in one body of the machine. The whole process is automatic. The machine is used in filling juices, mineral water and purified water in bottles made of polyester and plastics. The machine can also be used in hot filling if being installed with temperature controlling device. The handle of the machine can be freely and conveniently turned to adjust the machine to fill various types of bottles. The filling operation is faster and more stable because the micro pressure filling operation of the new type is adopted. There the output and benefit of the machine is higher than the machinery of the same specifications. The advanced OMRON programmed controller (PLC) is adopted to control the machine to run automatically while a transducer is used in the bottle -entering chains to adjust speeds and coordinated with the transducer of the main machine to make the operations of moving bottle forward steadily and reliably
|
Model:
|
CGF18-18-6
|
CGF24-24-8
|
CGF32-32-8
|
CGF40-40-12
|
|
capacity :500ml
|
6000-8000
|
8000-10000
|
12000-14000
|
16000-18000
|
|
bottle shape:
|
roud or square
|
|
PET bottle: (mm)
|
(Bottle Diameter):φ50-.φ110mm (Height):150-340mm
|
|
cap:
|
Plastic srew cap
|
|
filling precision:
|
≤±5mm
|
|
filling pressure:(Mpa)
|
0.15-0.35
|
0.15-0.35
|
0.15-0.35
|
0.15-0.35
|
|
rinsing pressure:(Mpa)
|
0.2-0.25
|
0.2-0.25
|
0.2-0.25
|
0.2-0.25
|
|
filling volume :(L)
|
3.5
|
4
|
6
|
8
|
|
overall size:(mm)
|
2300*1800*2350
|
2800*2200*2350
|
3600*2650*2350
|
3800*2950*2400
|
|
weight: (kg)
|
3500
|
4500
|
5500
|
6500
|
When you send inquiry,please also included the capacity and bottles shape and bottle volume you need to work on the machine, it is easy and accurately for us to recommand a right machine!
If any special,our manufacture also can design the machines according your requirement.
