Product show

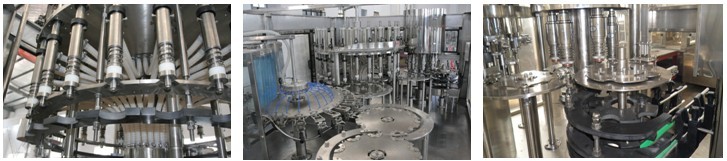

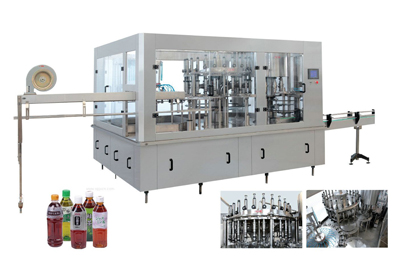

  • Product name:RGF Juice Washing-Filling-Capping Machine
  • Product description:


    Specifications

    Automatic Filling Machine
    1.Product:Juice,Tea Drink
    2.Bottle:PET
    2.Capacity:3000-36000b/h(500ml)
    3.PLC, touch scren, SS304

    Automatic Juice Filling Machine

    Filling line includes
    Water treatment
    Blow molding machine

    Unscrambler
    Air conveyor
    Rinsing-filling-capping 3-in-1 monoblock
    Sleeve / OPP labeler
    Air dryer, visual inspection, ink jet printer
    Shrink wrapper / wrap-round case packer
    Palletizer
    Etc.

    Main Features:

    1.Air Conveyor connectes with bottle-in starwheels. Bottle neck holding transferred.

    2.Clamp transferring technology varied bottle types.

    3.With little abrasion. Stable Transferring. Easy to change bottles.

    4.With ring type pressure bearing hydraulic cylinder.

    5.With high filling speed and exact liquid level.

    6.Excellent Stainless Steel. Electric Components are of world known brand. All achieve national sanitary standard.

    7.The bottle-out starwheel is of screwdown shape. No need to adjust transferring chain is height to different bottles.

    8.Easy to operate and maintain.

    9.PLC and transducers and othe main electric parts are of world famous brands, such as OMRON, MITSUBISHI etc



    Model:

    CGF18-18-6

    CGF24-24-8

    CGF32-32-8

    CGF40-40-12

    capacity :500ml

    6000

    8000

    12000

    18000

    bottle shape:

    roud or square

    PET bottle: (mm)

    (Bottle Diameter):φ50-.φ110mm   (Height):150-340mm

    cap:

    PE srew cap

    filling precision:

    ≤±5mm

    filling pressure:(Mpa)

    0.15-0.35

    0.15-0.35

    0.15-0.35

    0.15-0.35

    rinsing pressure:(Mpa)

    0.2-0.25

    0.2-0.25

    0.2-0.25

    0.2-0.25

    filling volume :(L)

    3.5

    4

    6

    8

    overall size:(mm)

    2450*1800*2350

    2780*2200*2350

    3600*2650*2350

    3800*2950*2400

    weight: (kg)

    3500

    4500

    5500

    6500
