Product description：
Specifications

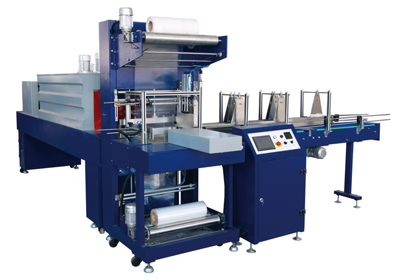

Shrink Wrapping Machine
1-Capacity:10Pcs/Minute
2-Pack type:PE,without tray
3-Flim width:<600mm
4.L600 x W320 x H400mm
Product parameter:
Facility external size:L5050×W3300×H2100mm
Wrappage max size:L600×W320×H400mm
Shrinkage film size:PE
Shrinkage thermo thickness:0.03-0.15mm
Thermo shrinkage tunnel temperature: 160 - 260°can adjust at will.
Max output per minute:8-10 bag
Facility power:18Kw
Actual power:15Kw/hr
Fressure requirement:380/220V
Facility weight:1.2T
Fan machine:1.1Kw 2set 380V, 65W 4set 380V
Facility basic configuration:
Thinget:5.7 inch touch screen, PLC controlling system
Taiwan AIRTAC pneumatic component 1set
Taiwan Telta frequency converter 3 set
Stainless steel wing heating tube 12 piece
China-America cooperation Teflon convey belt.
Shanghai Hemei electric-motor and Zhejiang Taili worm speed-regulation machine.
South-Korea Autonics photoelectric switch, proximity.
Thermo sealing knife ulminium-mould heating board, even temperature, long life, our company special production.
Whole machine plastic-sprayed, machine rack adopt to high-quality carbon steel, main part adopt to stainless steel.
Tottle convey machine length:2600mm
Carton and wrappage film pack separately.
Product description:
Frequency converter speed adjust,two segment convey device.
Bottle pushing, thermo sealing and cutting whole movement adopt to pneumatic fracture.
Proximity switch control film length.
Touch screen, PLC system greatly increase facility movement reliability.
Double-wind recycle fan machine, ensure shrinkage tunnel inside even temperature.
Super big wind-volume cooling system, ensure quickly get into shape .
Anti-high temperature teflon convey belt, convey steadily, high-strength anti-abrasion.
Frequency limitless speed adjust convey belt frame.
Convey belt height can make according client requirement, adjust range:±50mm
Bottle convey machine can meet with client bottle forward direction requirement, can lengthen or shorten.
Wing stainless steel heating system, endurance.
Meet with product instant stop requirement product-bearing rack device ensure production line consistency.
