Product description：
Specifications

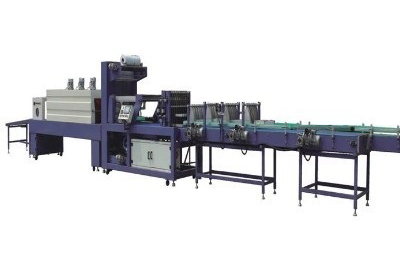

Shrink Wrapping Machine
1-Capacity:24000b/h
2-Pack type:PE,without tray
3-Flim width:<600mm
4.L1200 x W600 x H400mm
Technical parameter:
Facility model: AK-250A
Facility overall size: L12000×W1100×H2100mm
Facility overall size: Main equipment:L12000×W1100×H2100mm
Shrinkage machine:4200×1100×1700mm
Wrappage max size:L2400×W650×H450mm
Shrinkage film material: PE
Shrinkage film thickenss:0.03-0.15m
Thermo shrinkage tunnel max temperature: 160 - 260° adjust at will
Max output per minute: 16-20 bag
Facility power:35Kw
Actual power:20Kw/h
Pressure requirement: 380V/50-60HZ
Facility weight: 2500
Air pressure: 0.6-0.8mpa
Working noise:≤65db
Import bottle convey belt width: 541mm
Fan:1.1Kw 3set 380V, 60W 6set 380V
OMRON : PLC controlling system
WEINVIEW:Touch Screen
Taiwan Airtac pneumatic component 1set
Taiwan Telta transducer 2set
Stainless steel wing heating tube 12pcs
China-USA cooperation Teflon convey belt.
South Korea Autonics photoelectrical switch, approach witch
Thermo sealing knife aluminum casting heating board, even temperature, long usage life, our company special production.
Whole machine appearance plastic spray, machine rack adopt to high-quality carbonated steel, main part adopt to stainless steel.
Wooden case and wrappage film separate package.
Product instruction
Frequency converter speed adjust、two segment convey device.
Bottle pushing, thermo sealing and cutting whole movement adopt to pneumatic fracture.
Proximity switch control film length
Touch screen, PLC system greatly increase facility movement reliability.
Three-wind recycle fan machine, ensure shrinkage tunnel inside even temperature.
Super big wind-volume cooling system, ensure quickly get into shape .
Anti-high temperature teflon convey belt, convey steadily, high-strength anti-abrasion.
Frequency limitless speed adjust convey belt frame.
Convey belt height can make according client requirement, adjust range:±100mm
Wing stainless steel heating system, endurance
Meet with product instant stop requirement product-bearing rack device ensure production line consistency.
