1. Tank apply to cosmetics, food, chemical and pharmaceutical

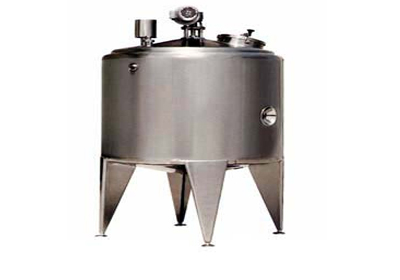

This mixing pot apply to mixing, homogenization, dispersion, heating, cooling, circulation, pump materials and other functions are all one, it is the ideal equipment for produce lotion ,cream, cosmetics, etc.
2. Performance and characteristics
(1). With high-speed dispersion device and strong mixing viscous dispersion of solid and liquid materials; the main stirring with variable speed device, it can reduce the formation of bubbles when high viscosity under low temperature, the gear pump can cyclic discharge, so it can speed up the product formation and discharging.
(2). Apply to 304, 316 stainless steel as material, polish treatment applied to inner and outer surface of tank, all connection points adopt rolling and annular rolling and annular welding. Avoid angle welding, without any dead comer, easy to clean, equipped with entry hole for man and air-filler, tank volume.
3. Specifications
|
Specification
L
|
Volume (L)
|
Mixing Power
(KW)
|
Mixing speed(R/MIN))
|
Homogeneous power(KW)
|
Homogeneous
speed(R/MIN)
|
Type of heating
|
|
XJJ-C200
|
200
|
1.5
|
0-65
|
4
|
2890
|
Steam or electric
|
|
XJJ-C300
|
300
|
1.5-2.2
|
0-65
|
4
|
2890
|
|
XJJ-C500
|
500
|
3.0
|
0-65
|
5.5
|
2890
|
|
XJJ-C1000
|
1000
|
4
|
0-65
|
7.5
|
2890
|
|
XJJ-C2000
|
2000
|
5.5
|
0-65
|
11
|
2890
|
|
XJJ-C3000
|
3000
|
7.5
|
0-65
|
18
|
2890
|
|
XJJ-C5000
|
5000
|
11
|
0-65
|
22
|
2890
|
