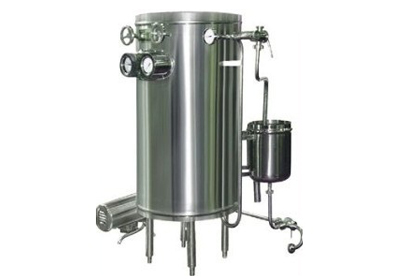

This machine adopts the present most advanced welding technology, selects the import high quality polish stainless steel pipeline. It is suitable for fresh milk, beverage and wine etc. If completing with the high-pressure even machine, it also can be used for thick material. Our factory is a manufacturer who produced the first over high temperature sterilizing machine in China. At present, there are several thousand set which have been used in the whole country.
The main technical parameters:
|
Model
|
RP6L-10
|
RP6L-20
|
RP6L-40
|
RP6L-60
|
|
Operational Capacity (t/h)
|
0.5~ 1.0
|
1.5~ 2.0
|
3.0~ 4.0
|
5.0~ 6.0
|
|
Sterilizing Temperature (°C)
|
115 ~ 135
|
115 ~ 135
|
115 ~ 135
|
115 ~ 135
|
|
Steam Pressure Used(Mpa)
|
<0.78
|
<0.78
|
<0.78
|
<0.78
|
|
High Temperature Heated Time
|
4 ~ 6S
|
4 ~ 6S
|
4 ~ 6S
|
4 ~ 6S
|
|
Inlet Material Temperature (°C)
(added cooling pipe)
|
<45
|
<45
|
<45
|
<45
|
|
Outlet Material Temperature (°C)
|
<65
|
<65
|
<65
|
<65
|
|
Steam Consumption (Kg/L)
|
<0.12
|
<0.15
|
<0.15
|
<0.20
|
|
Motor Power (kW)
|
1.5
|
2.2
|
3
|
4
|
|
Outside Size (mm)
|
920*920*1400
|
1100*1100*1700
|
1200*1200*1800
|
1400*1400*2000
|
|
Floor Area (m2)
|
0.8
|
1.0
|
1.5
|
2.0
|
|
Net Weight
|
280
|
380
|
550
|
700
|
