Product description：

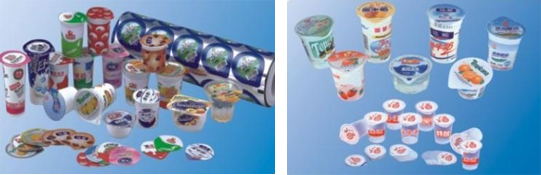

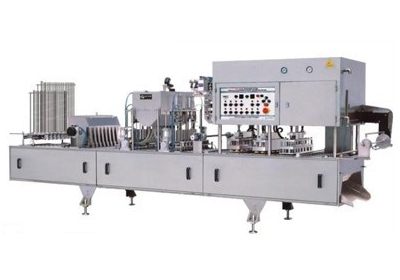

This machine applied to the liquid storage in plastic cups, bowls box container filling and sealing. Such as: fruit juice, milk, mineral water, etc.
This series machine from automatically drop the cup, automatic filling and sealing, there are optical devices, to ensure sealing pattern on the positive
There are many specifications, for different shape and capacity of containersCan be based on user needs, increasing calcium tablets, solids such as fruit filling, and can print the date of devices insta
SPECIFICATION：
|
Model
|
AK-20C2
|
AK-20C4
|
AK-20C6
|
|
Packaging Speed
|
1500-2000piece/h
|
3500-4000piece/h
|
5500-6000piece/h
|
|
Filling Content
|
0-500ml
|
0-500ml
|
0-500ml
|
|
Voltage
|
380V50HZ
|
380V50HZ
|
380V50HZ
|
|
Electric Motor Power
|
0.75KW
|
1.5KW
|
2KW
|
|
Power
|
1.6KW
|
3KW
|
5KW
|
|
Air Pressure
|
0.5MPa-0.75 Mpa
|
0.5MPa-0.75 Mpa
|
0.5MPa-0.75 Mpa
|
|
Maximum Air Consumption
|
0.45m/min
|
0.45m/min
|
0.45m/min
|
|
Size（L*W*H）
|
3000x800x1700mm
|
3000x1000x1700mm
|
3000x1200x1700mm
|
|
Weight
|
About1000kg
|
About1500kg
|
About2000kg
|
