Product show

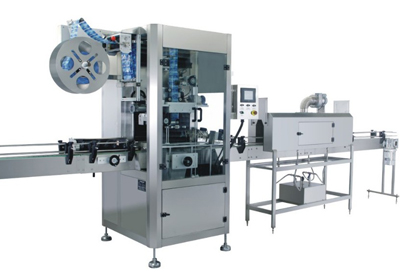

  • Product name:AK-S150 Automatic Sleeve Lableing Machine
  • Product description:

    FacFaility character:

    Whole machine agreat quantity of stainless steel and good-quality ulminium alloy ,reasonable fracturecompactconvenient to adjust

    Shrinkage film volume label rack, match with adjustable device, convenient to adjust according to differ volume label 5″~10″paper tube.

    Simply installation, then can convenient for square and round bottle.

    No need of instrument, rotary mechanism is convenient to adjust, apply to differ bottle type.

    Unique sleeve labelling method, adopt to pressing sleeve labelling method, not only convenient but also reasonable.

    Auto controlling feeding system, level-off shrinkage film materials and regulate/adjust strain simultaneity.

    Unique design knife plate, within specification scope, can avoid changing knife base, knife changing is quick and conveniently.

    Middle guide-pole clip system, mould changing is more quick, no need any instrument.

    Label location system, can promote and demote in-phase adjust location according to specific bottle type requirement.

    Adopt to Japanese import servo system and high-sensitivity photoelectric, label cutting precision is highly.

    Stainless steel electric equipment controlling case, controlling adopt to Japanese OMRON PLC.

    Adopt to advanced man-computer Interface auto controlling technology, key electric component all adopt to international famous industrial brand.

     Technology parameter

    AK-S150

    AK-S250

    AK-S350

    Power

    220/380V 3KW

    Power

    220/380V 4KW

    Power

    220/380V 5KW

    Mashine size

    2220×1100×2100(mm)

    Mashine size

    2220×1100×2100(mm)

    Mashine size

    2220×1100×2100(mm)

    Speed

    150BPM(MAX)

    Speed

    250BPM(MAX)

    Speed

    350BPM(MAX)

    Bottle size

    ф28-ф125*300(H)mm

    Bottle size

    ф28-ф125*300(H)mm

    Bottle size

    ф28-ф125*300(H)mm

    Label Thickness

    0.035-0.07mm

    Label Thickness

    0.035-0.07mm

    Label Thickness

    0.035-0.07mm

    Label Material

    PVC PET OPS

    Label Material

    PVC PET OPS

    Label Material

    PVC PET OPS

    Label hight

    30-250mm(MAX)

    Label hight

    30-250mm(MAX)

    Label hight

    30-250mm(MAX)

    Weight

    480kg

    Weight

    600kg

    Weight

    700kg
