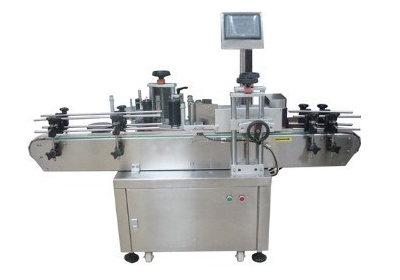

Product description：
Device characteristic
Machiner-wide adoption of a mature technology PLC control system, so that the whole stable, high-speed
Operating system using touch-screen control, simple, practical, efficient
Upgraded version of three-dimensional angle adjustment of the standard station design, may be adapted to tapered bottles
Imported servo control system can be chosen, which is stable and high-speed
Screw adjusting suppression body movements accurately
Synchronization chain agencies, to ensure stable and accurate calibration
Labeling transparent labels without bubble and self-adhesive labels without wrinkle
The use of a wide range of a multi-purpose machine and adaptable
The scope of application
Multi-function automatic labeling machine to label round bottles, square bottles, tapered bottles and flat bottles(in food, medical, daily chemical industry and other industries).
Technical parameter
|
Name
|
Parameter
|
|
Voltage
|
AC220V 50/60HZ
|
|
Power
|
800W
|
|
Operating direction
|
left or right
|
|
Driving mode
|
stepping or servo motor
|
|
Labeling speed
|
50-180 bottles/min
|
|
Labeling accuracy
|
±1 mm (subject to the roughness of the plane)
|
|
Label roll
|
Φ 76 mm
|
|
Label core
|
Φ 300 mm
|
|
Printer to use air
|
5kg/cm2
|
|
Size appearance
|
2400(L) 1350(W) 1500(H) mm
|
