Product description：
Specifications

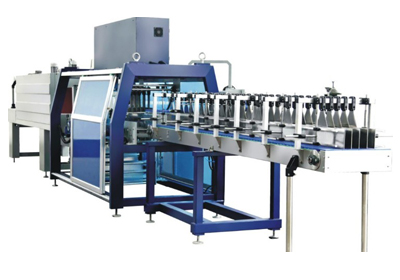

Shrink Wrapping Machine
1-Capacity:36000b/h
2-Pack type:PE,without tray
3-Flim width:<600mm
4.L1200 x W600 x H400mmApplication range:
This type of machine is suit for beverage, drinking water, beer, wine and infusion bottle ect. packaging, which can be packed without tray and with a firm and beautiful appearance.
Advantages:
Applying imported Simens PLC, which can control the machine automatically, with stable performance, precise control.
With the capacity of feeding and sorting bottles, shrinking and cooling shaping automatically.
inductive switch control the feeding of film, which can control the length of film and reduce the consumption.
Imported tranducer control for the convey motor, which can realize stepless speed reqgulation.
Advanced Helical air circulation structure, three layer of heat insultation treatment, and energy saving.
Strengthened cooling shaped tunnel, which can shaped the package quickly and transported conveniently.
Loading bottom plate automatically, color film wrapping and shinking.
Technical data:
|
External dimension
|
11500×1560×2600mm
|
Weight
|
5.5T
|
Max. packaging size
|
600×400×350mm
|
Packing speed
|
40-45 bags/min
|
Power supply
|
380V, 3phase, 60-70KW
|
Air pressure
|
0.6-0.8Mpa
|
