Features:
*High productivity:1400pcs/cavity/hour.
*High eligible rate: above 99.5%.
*Power saving: heater is fixed with link of short section(pitch43.8mm), which assures to heat more preforms with the same heating length. In this way, it saves electricity of 25%.
*Adopting SIMENS electric controlling system with high precision and fast speed.Stable function: blowing system adopts Germany valve and cylinder, which has stable and accurate stretching speed and good product consistency.
*Mold fixing structure assures fast mold fixing speed and fast mold changing speed.
*Automatic plastic loader and automatic recovery device.

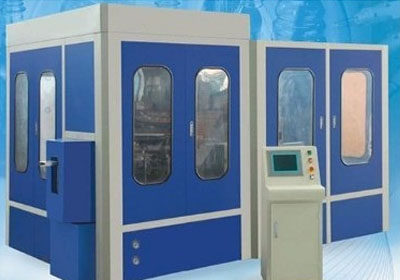

CM-G series composed by mechanical, electrical and pneumatic assembly with the latest international high technology. They are automatic, stable, safe, efficient, with speed of 14,000BPH and no contamination in the process.
Main Parameter:
|
Model
|
ITEM
|
AK-G4
|
AK-G6
|
AK-G8
|
AK-G10
|
|
Productivity
|
Depend on bottle design
|
4500-6000 pcs/h
|
7500-9000 pcs/h
|
9000-12000 pcs/h
|
11000-15000 pcs/h
|
|
Product type
|
Body diameter
|
≤90mm
|
≤90mm
|
≤90mm
|
≤90mm
|
|
Height
|
＜280mm
|
＜280mm
|
＜280mm
|
＜280mm
|
|
Neck diameter
|
18-38mm
|
18-38mm
|
18-38mm
|
18-38mm
|
|
Mould
|
Cavity
|
4
|
6
|
8
|
10
|
|
Mold thickness
|
190mm
|
190mm
|
190mm
|
190mm
|
|
Electrical source power
|
380v/220v 3Phase 50/60Hz
|
380v/220v 3Phase 50/60Hz
|
380v/220v 3Phase 50/60Hz
|
380v/220v 3Phase 50/60Hz
|
|
Main machine power
|
Rated Power
|
120KW
|
150KW
|
180KW
|
220KW
|
|
Really use power
|
50KW
|
57KW
|
80KW
|
100KW
|
|
Air system
|
HP air compressor
|
6.0 m3/min 3.0Mpa
|
8.0 m3/min 3.0Mpa
|
10.0 m3/min 3.0Mpa
|
12.0m3/min 3.0Mpa
|
|
LP air compressor
|
-
|
-
|
4.0 m3/min 1.0Mpa
|
6.0m3/min 1.0Mpa
|
|
Air Tank
|
1.0 m3 3.0 Mpa
|
1.6 m3 3.0 Mpa
|
2.0 m3 3.0 Mpa
|
2.0 m3 3.0 Mpa
|
|
Air dryer
|
6.0 m3/min 3.0Mpa
|
8.0 m3/min 3.0Mpa
|
10.0 m3/min 30kg
|
12.0 m3/min 3.0Mpa
|
|
Cooling water
|
Water Chiller
|
3HP
|
5HP
|
8HP
|
10HP
|
|
Machine size
|
Size(L*W*H)
|
2780*4000 *2100mm
|
3200*2730*2190mm
|
3600*3100 *2190mm
|
4200*3270*2190mm
|
|
Unscrabler size
|
Size(L*W*H)
|
1200*500*2800mm
|
1200*500*2800mm
|
1400*500*2800mm
|
1800*500*2800mm
|
|
hopper size
|
Size(L*W*H)
|
1200*1100*1200mm
|
1300*1200*1500mm
|
1300*1200*1500mm
|
1600*1200*1500mm
|
|
Weight
|
|
4500 KG
|
6000 KG
|
8000 KG
|
9000KG
|
|
Preform unscrambler
|
|
PET
|
PET
|
PET
|
PET
|
