Product description：
Product Recommendetion:

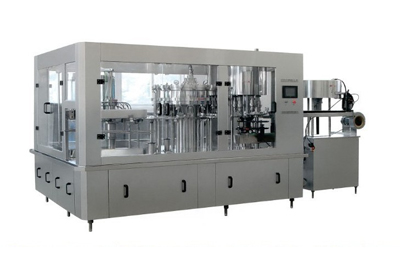

this machine is mainly used for washing, filling capping carbon dioxide drink such as cola ,soda water and so on,The machine design is shorten the time for the drink material contact with outside,Incrensed the sanitation condition and throughout and economy benefit.
Capability Character:

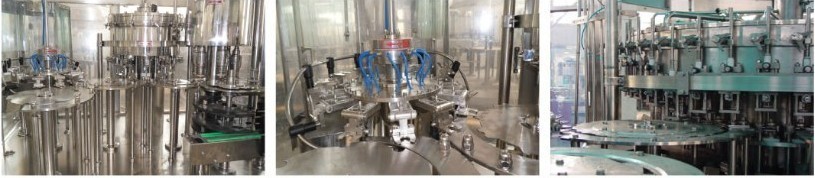

It adopts hanging type conveying-bottle structure to make changing bottle model more convenient, faster and more east. The main machine adopts advanced PLC control technology. The key electric elements adopt international famous products.
Main Technological Data:
|
model
|
DGF 14-12-5
|
DGF 18-18-6
|
DGF 24-24-8
|
DGF 32-32-8
|
|
|
Capacity(500/ml/bottle/h)
|
3000
|
5000
|
8000
|
10000
|
|
|
Suitable bottle shape
|
PET circular or square
|
|
Bottle diameter(mm)
|
φ50-φ90
|
|
Bottle height(mm)
|
150-310
|
|
Compressed air pressure(MPa)
|
0.3-0.7
|
|
Washing medium
|
aseptic water
|
|
pressure(MPa)
|
0.25
|
|
Total Power (KW)
|
3
|
3
|
4
|
5.5
|
|
|
Overall dimensions(mm)
|
2230x1630x2250
|
2360x1830x2250
|
2900x2200x2250
|
3880x2200x2250
|
|
|
Weight (kg)
|
2200
|
2500
|
4200
|
6000
|
|
