Product description：
1.Facility basic summary and
requirement

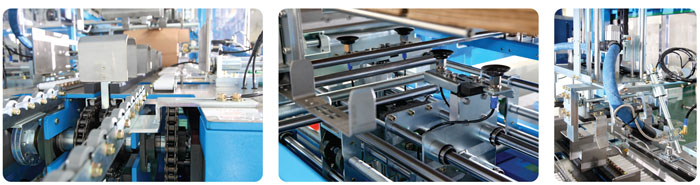

The machine adopt to servo location, PLC controlling,
auto operation, main drive adopt to import motor drive, multi degree rotation
via chain, chain wheel speed regulator ect.
It auto degree is high, reliable controlling, easy to adjust,
intelligentize manipulation ect advantage, can widely used for beverage, beer,
chemistry, food, medicine ect industry, can do all kind of tin and bottle
second time package, can match with auto filling production line.
2. Main parameter
Product capacity:25carton per minute
Rating power: 10KW
Used power supply: three
phase,380V,50Hz
Controlling power supply: 24V DV
Compressor air:1500L per minute,
0.6-0.8Mpa
Hot melting glue solidify time:
1.5-2S
Machine weight: 3500kg
Overall size: L6285*W2582*H2115MM
Bottle entry conveyor size:
L3000*W620*1200MM
Package product overall size: Length
350-450、Width 230-330mm, Hieght:85-320mm;
Package bottle diameter: D55-108MM
Cardboard requirement: accord with
international GB/T6544-2008
Facility basic summary and
requirement:
|
Facility name
|
Carton package machine
|
Power supply
|
380V,three-phase
|
|
Production capacity
|
10-25pack/ minute
|
Power supply
|
220V AC
|
|
Product package
qualified ratio
|
＞99.8%
|
Controlling voltage
|
24V DC
|
|
Hot glue solidify time
|
≤1.5-2S
|
Main machine power
|
10KW
|
|
Facility weight
|
3.5T
|
Gas consumption quantity
|
1500 L/min
|
|
Machine overall size
|
6285*2582*2115
|
Compressor
air requirement
|
0.6~0.8MPa
|
|
Bottle enter size
|
3000*620*1200
|
Package product
overall size
|
(350-450)Length
(200-330)Width
(85-320)Height mm
|
|
Noise
|
85dB
|
Circumstance temperature requirement
|
0—45℃
|
|
Circumstance
humidity requirement
|
Usually below 75%RH
|
Workshop requirement condition
|
Firm foundation
|
|
Facility
collocate requirement
|
Dry, anti-dust, good
ventilation good condition
|
|
Cardboard
specific requirement
|
a. Material:
corrugate, used carton is three-layer, surface is white 250gram/sm,middle is
high strength 150gram/sm. Bottom is cow cardboard 280g/sm;
b. carton each layer not allow have layering
phenomenon , leatheroid thickness ≥3mm
c. carton indentation thread
thickness is moderate, width is not bigger than 2mm
d. carton wave cover via open, close 180degree
reciprocate above 5time, carton outside layer not allow to have crack. Inside
crack total length total not bigger than 70mm.
e. Carton humidity
should ≤11%
|
