Product description：
Introduction

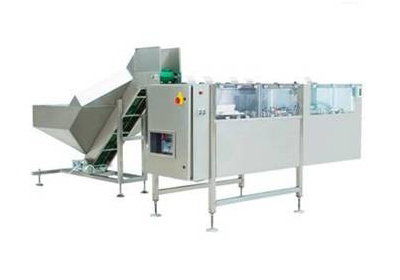

LP-200 Automatic Bottle Unscrambler is making up of bottle elevator ,round
plate, bottle-reject, bottle-arranging parts and the
electrical cabinet . Put disordered bottles to the bottle elevator, through
round plate, conveying belts, bottle arranging parts , then bottles can stand
on the belts. This machine is characterized by the compact structure, simple
operation principle, mature technique and stable movement. Until present, it
has been widely used by the pesticide industry for many years--Syngenta, Shandong Binnong Technology co., ltd China,QiaoChang chemical and HenanLianbao Co., Ltd. China and etc.
Features：
2.1、Simple structure , easy operation and convenient adjustment . While the other company’s same machine are
larger than us, length over 3 meters and weighted too much.
2.2、When changing different size bottle,
there is no need to change model.Its applicable range is 50-1000ml bottles. You
only need to adjust belt in the bottle hopper and the space of the unscrambling
structure.
Main
Technical Parameters：
1.Unscrambling
Speed：≤ 200 bottles/min
2.Applicable
Bottle Diameter：Φ45－90mm
3.Applicable
Bottle Height：80-240mm
4.Air Pressure：0.5～0.7 MPA
5.Power
Source：～220V、50HZ
6.Power：1.5KW
7. Bottle
Unscrambler External Dimension：2600×1500×1500mm（L×W×H)
8. Weight：about 450Kg
