Product description：
PRODUCT DESCRIPTION

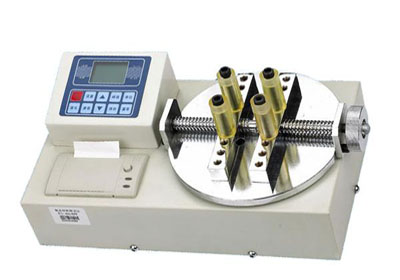

DTG-20N Torque Meter/Measuring Instrument for Torque Test is applicable in open force and lock force tests of cups of bottle, suction and flexible tube packages. The open and lock forces of bottle caps are important online or offline technical parameters of production, and will influence the transportation and consumption of the products. Torque Meter/Measuring Instrument for Torque Test is the professional instrument for the open force and lock force measurement of bottle products. Torque Meter/Measuring Instrument for Torque Test is stable and precise, a necessity of the manufacturing process.
CHARACTERISTICS
Micro-computer control, LCD display, PVC operation board;
Automatic peak value keeping;
Two modes for lock force and open force;
Standard testing units;
Auto zero, error alert, overload protection;
Memory while power failure;
Mini-printer;
RS232 interface;
TECHNICAL INDEXES
Specifications
|
20Nm (standard) 40Nm (optional)
|
Accuracy
|
0.001Nm
|
Resolution
|
0.001 Nm
|
Clamp Range
|
Φ5-~Φ170mm (diameter)
|
Power
|
AC 220V 50Hz
|
Net Weight
|
19kg
|
