Product description：
Specification:：

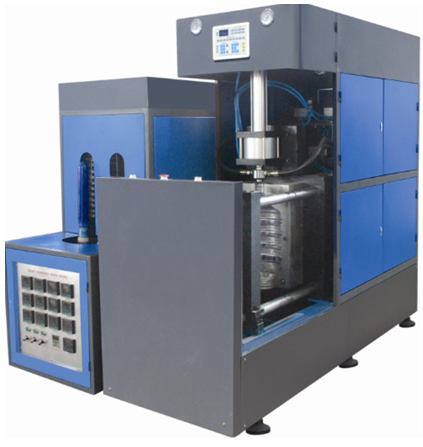

AK-31B semi-automatic bottle blow molding machine is suitable for producing PET
plastic containers and bottles from 5-10L. It is widely used to produce the
carbonated bottle, mineral water pesticide bottle oil bottle cosmetics,
wide-mouth bottle and hot fill bottle etc.
1.Adopting double crank to adjust mould ,heavy locking mould, stable and fast
,Adopt infrared oven to heat the perform ,the perform rotated and heated
equally.
2.The air system has been divided into two parts: pneumatic action part and
bottle blow part to meet the
different requirements for the action and blow .It can provide
sufficient and steady high pressure for blowing large irregular shaped bottles.
3.The machine is also equipped with muffler and oiling system to lubricate the
mechanical part of the machine.
4.The machine can be operated in the step-by-step mode and the semi-auto mode.
5.The machine is small with low investment , easy and safe to operate
Technical parameter
|
Name
|
Item
|
Unit
|
Details
|
|
Blowing machine
|
Dimension
|
mm
|
1600*600*1610mm
|
|
Weight
|
kg
|
500
|
|
Bottle volume (max)
|
ml
|
5000
|
|
Bottle volume (min)
|
ml
|
3000
|
|
Bottle Neck Diameter (max)
|
mm
|
50
|
|
Bottle Neck Diameter (min)
|
mm
|
30
|
|
Body Diameter (max)
|
mm
|
200
|
|
Body Height( max)
|
mm
|
420
|
|
Number of Cavities
|
mold
|
1
|
|
Production output
|
pcs/h
|
400BPH
|
|
Clamping force
|
T
|
5.7（56KN）
|
|
Mold thickness
|
mm
|
200（max）
|
|
Mold width
|
mm
|
360x390
|
|
Space between Tie-bars
|
mm
|
120-220
|
|
Diameter of Tie-bars
|
mm
|
63
|
|
Scope of Tie-bars
|
mm
|
405
|
|
Mold stroke
|
mm
|
160
|
|
Stretching stroke (max)
|
mm
|
420
|
|
Working pressure
|
Mpa
|
0.8-1.0Mpa
|
|
Blowing pressure
|
Mpa
|
2.0-3.0Mpa
|
|
Voltage/Power
|
V/KW
|
220V/1KW
|
|
Weight
|
Kg
|
500
|
|
Pre-heater
|
Dimension
|
mm
|
1870*630*1450mm
|
|
Weight
|
kg
|
260
|
|
Voltage/Power
|
V/KW
|
380V/14KW
|
